A refreshed, renovated, historic, four-story façade greets visitors to the redesigned and re-opened Macy's department store at 422 Fulton Street in Downtown Brooklyn, New York. The nine-story building's top five levels have been converted to Class A offices. Macy's occupies approximately 300,000 square feet of retail space on the lower floors, retaining its street-level prominence, architectural heritage and community connection.

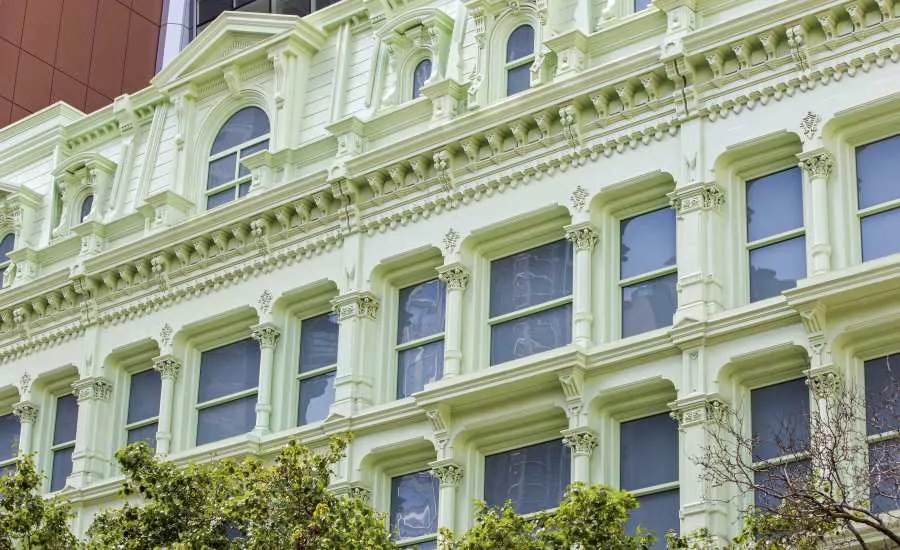

The windows on the second, third and fourth floors were replaced to improve the exterior appearance of the ornate, cast-iron façade. The previous window units had aged throughout the decades. Dramatically enhancing the retail façade for shoppers, staff and the community, the new windows present an exterior worthy of the building's legacy. In total, 63 aluminum-framed windows were supplied with panning by Winco Windows. All of Winco's aluminum material was finished by Linetec in a Key Lime soft green color to complement the historic façade's palette.

Each window's dimensions span approximately 4 by 9 feet and 15 were manufactured with arched tops. Winco's 1450H Series window systems are fixed with offset lites to replicate the historic look of traditional, operable hung units. "The systems were standard, but utilized in innovative combinations to meet the historic requirements," said Winco's sales representative, Marty Colby.

The window systems' modern construction meets the Architectural AW-100 Performance Class designation per the North American Fenestration Standard (NAFS). Supporting the windows' performance and durability, Linetec finished the aluminum framing and panning using a 70% PVDF resin-based architectural coating. To retain the project's unique color and to withstand New York's climate and high-traffic conditions, the windows' painted finishes meet the industry-leading AAMA 2605 coatings specification for high resistance to corrosion, weathering, pollution, salt spray, humidity and abrasion.

Too Beautiful to Destroy

Long before Brooklyn's transit-rich neighborhood became home to Macy's Downtown Brooklyn store in 1995, it originally was constructed in 1865 when horse-drawn carriages were the primary transportation in New York. It became the flagship department shore of Wechsler & Abraham, forerunner to becoming the better known Abraham & Straus stores.

The building was designed in the French Second Empire architectural style capped with a mansard roof and clad in a cast-iron façade consisting of thousands of interconnected pieces. The building underwent several renovations and expansions through the decades. "While the original building never received landmark status, it was too beautiful to destroy," noted Winco's vice president of sales and marketing, Kurtis Suellentrop.

By 2015, the iron cladding remained up to the fourth story and stretched 98 feet wide. More than 1,000 pieces weighing 69 tons were cataloged and shipped to restoration and window replacement specialty contractor Allen Architectural Metals in Alabama.

Winco worked closely with Allen Architectural Metals to provide the window system design, engineering and isometric details to suit the façade system's punched openings. The original windows were replicated using Winco's 1450H Series windows. Colby elaborated, "The restored historic façade was reinstalled over a concrete weather wall that is Macy's portion of the new building. Monolithic spandrel glass with a tinted, reflective infill hides the contemporary building from passersby, while presenting the façade's original sightlines."

Additional renovation project team members included architectural firm Perkins Eastman and general contractor JRM Construction Management. Construction costs for the total five-floor renovation are estimated at $100 million.
