Developed specifically for detention and correctional facilities, ASTM F2322 evaluates the ability of complete wall assemblies to withstand repeated physical attacks. Unlike component-only testing, the standard subjects entire wall systems to sustained impacts using blunt and sharp weighted objects while allowing testers to target vulnerable areas such as joints, fastener lines, framing members and wall edges. Grade 3 assemblies must withstand 200 impacts over 20 minutes, while Grade 4 assemblies must endure 100 impacts within 10 minutes.

"The mesh is only one piece of the equation," said Christopher Little, senior category manager for ClarkDietrich. "If the framing is undersized or improperly detailed, the wall can fail at the studs or connections even when the mesh stays intact. The only way to know a system truly performs is through documented, third-party testing of the complete assembly, framing included."

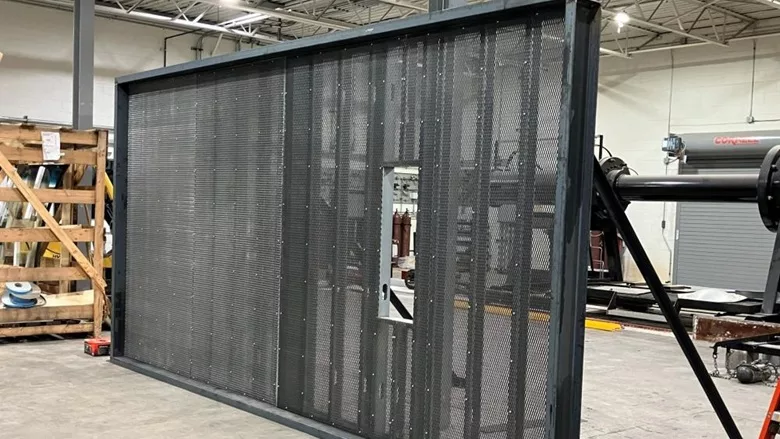

Testing was conducted March 9-13, 2026, at Intertek Testing Laboratory in York, Pennsylvania. ClarkDietrich notes that the published ASTM F2322 ratings apply only to the complete assemblies that were tested, including framing, reinforcement, barrier mesh, attachments, finishes and transitions. Full test reports are available upon request.

For more details on the complete barrier mesh systems evaluated, visit clarkdietrich.com/products/barrier-mesh-system-tested-impact-resistance.
