Architects have a lot to consider when beginning a new project. Beyond all of the designing, testing and product selection, they must also fully understand all of the potential problems associated with the project. This is especially true for restoration jobs, where challenges borne from mistakes that might have been made 100 years ago can be lurking in shadows.
The Bradford County Courthouse in Towanda, Pa., is the epitome of a challenging historic restoration, and how tricky is can be to find the right building material. The courthouse’s restoration was anything but simple due to its lengthy list of problems: persistent leaking, substrate vulnerabilities including a weak roof deck, poorly secured roof tiles and frame, serious blow-off and pull-out risks, and more.
With so many issues readily known and even more potentially lurking, Levine & Company, Inc.; Charles F. Evans Company, Inc.; and Hunt Engineers, Architects & Land Surveyors, DPC faced a daunting architectural challenge.
A 120-Year-Old Web of Problems
The courthouse’s problems began in 1896 when it was built with a different material than what was originally specified. Just before the roof was installed, the material was changed from black slate shingles to green-glazed, French-style terra cotta tiles.
“When we dug up the building’s past, we found it was actually quite the scandal in the local paper when the roofing material was changed to terra cotta,” said Jeff Levine, former president of Levine & Company and a key consultant for the Bradford project. “Regardless, issues were likely brewing because the main roof’s slope has always simply been too low for tile or slate to provide effective weatherproofing.”
Around 30 years later, leaking was frequent and extensive repairs were needed. 16-ounce, Spanish-style copper shingles were used to replace the terra cotta tiles removed from the main roof. Also, a new steel deck was added with two layers of 1/2-inch wood fiberboard coated with in asphalt.
The copper shingles provided a solution for nearly a century. But by 2016, the fiberboard—which is not considered a sufficiently dense material to begin with—was severely deteriorated, which caused leaking and posed a serious pull-out and blow-off risk.
“We quickly realized that we were dealing with more than old-age and weathering,” noted Levine. “The roof was suffering from decades of mistakes, which meant before we could fixed anything, we had to untangle it from the larger web of problems.”
Additionally, since it was listed on the National Register of Historic Places in 1987, all updates had to be vetted by the State Historic Preservation Office due to the courthouse’s historical significance.
The team looked into following the original design with modern tile and slate. But quickly realized they needed a more durable, long-lasting material to withstand Pennsylvania’s harsh winters and to accommodate the relatively low-slope of the main roof.
“After evaluating all of our options, we chose copper,” said Levine. “It’s a reliable, low-maintenance material, and it was appropriate for courthouse’s architectural era.”
Architectural copper can easily last 100 years due to its natural oxidation process. When it is exposed to the elements, a chemical reaction takes place, forming a tough oxide/sulfate coating, or patina. This layer allows copper to resist corrosion almost indefinitely, while also gently changing the color over time, creating an “evolving beauty” that other metals struggle to match.
It’s also a modern sustainability solution. After the metal is taken off a building at the end of its service life and melted down, it’s virtually “as good as new.” When only counting the portions of the copper industry essential for architecture, 72 percent of all the copper comes from recycling sources and is known to maintain 95 percent of its original monetary value.
With the material selected, the installation began. Due to its size and daunting complexity, the project was split into two phases: renovating the dome and updating the roof.

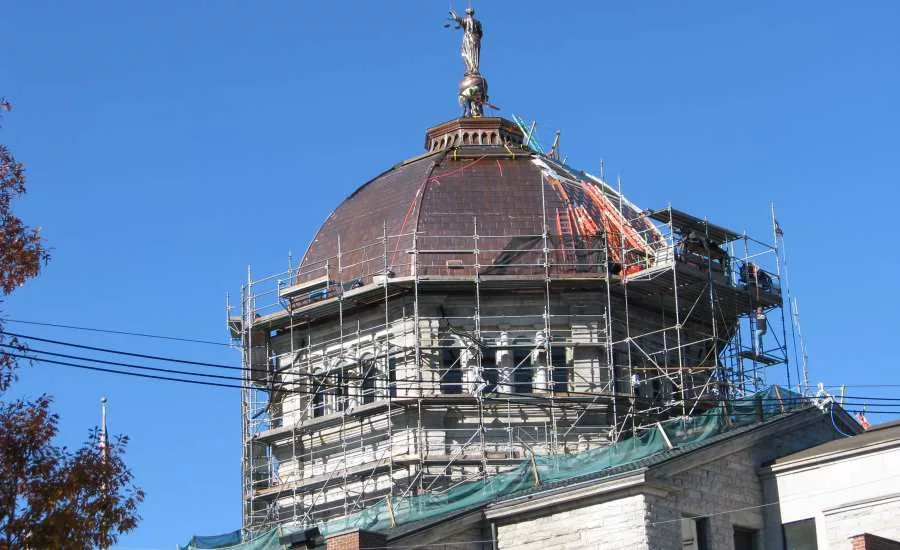

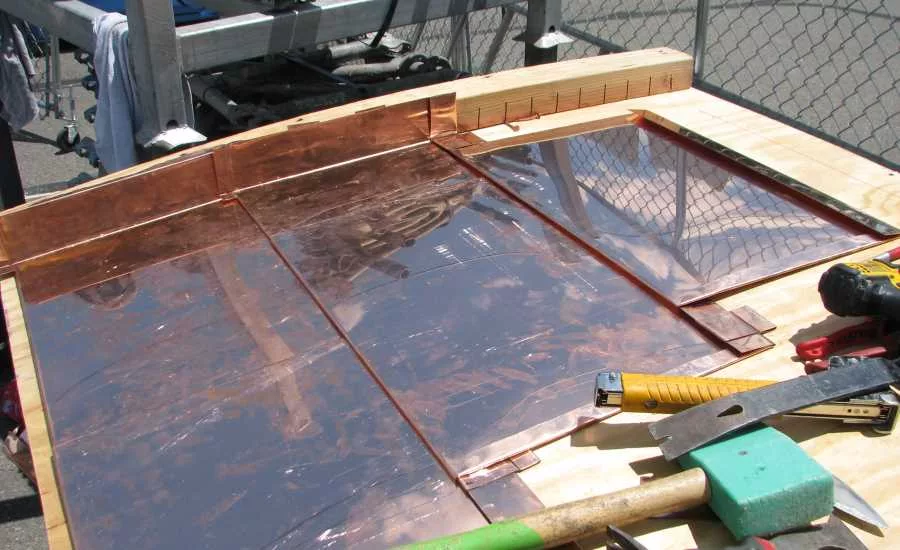

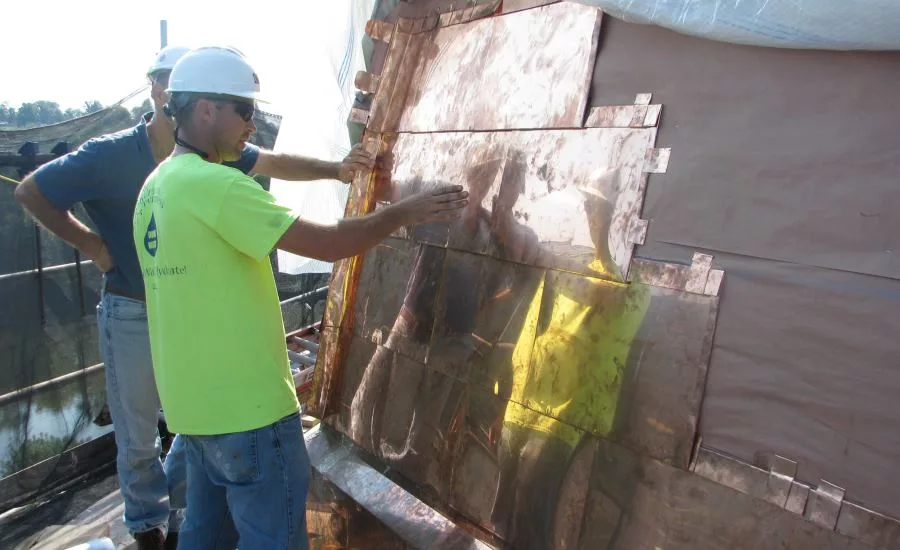

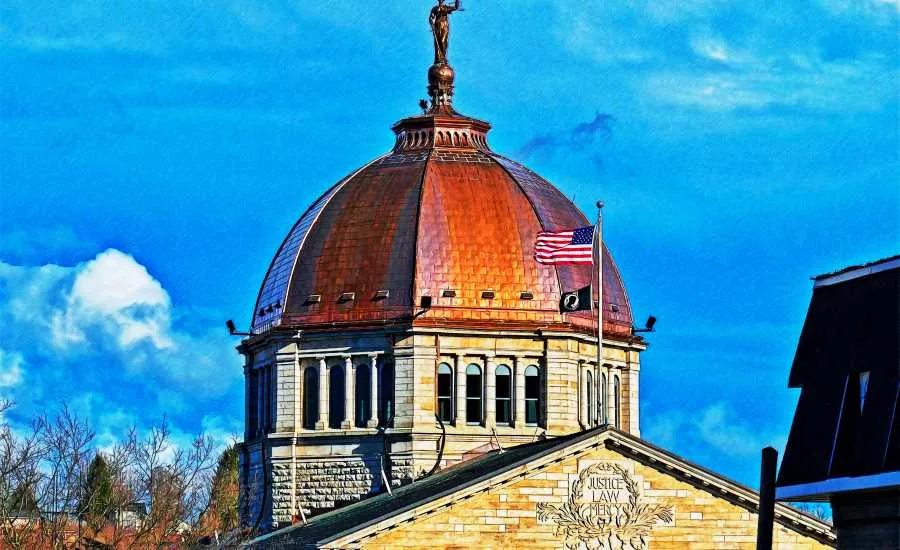

The first phase ran from April 2016 to April 2017 and involved the removal of the remaining terra cotta tiles from the dome and installing 3,300 square-feet of new flat-seam, 20-ounce cold rolled copper pans.
“While working on the dome, we encountered many of the issues the original architects and contractors likely faced,” said Bill Burge, construction manager for Charles F. Evans Company. “The dome’s angle made installing hip battens time consuming and intricate, but we knew using copper meant this wouldn’t need to be done again for another century.”
Flat seam roofing systems are typically used on roofs that are flat or have a low pitch or alternatively on very steep slopes. They are also used on curved surfaces such as domes and barrel vaults. Additional installation details and recommendations can be found within the Copper Development Association’s (CDA) Copper in Architecture—Design Handbook on www.copper.org.

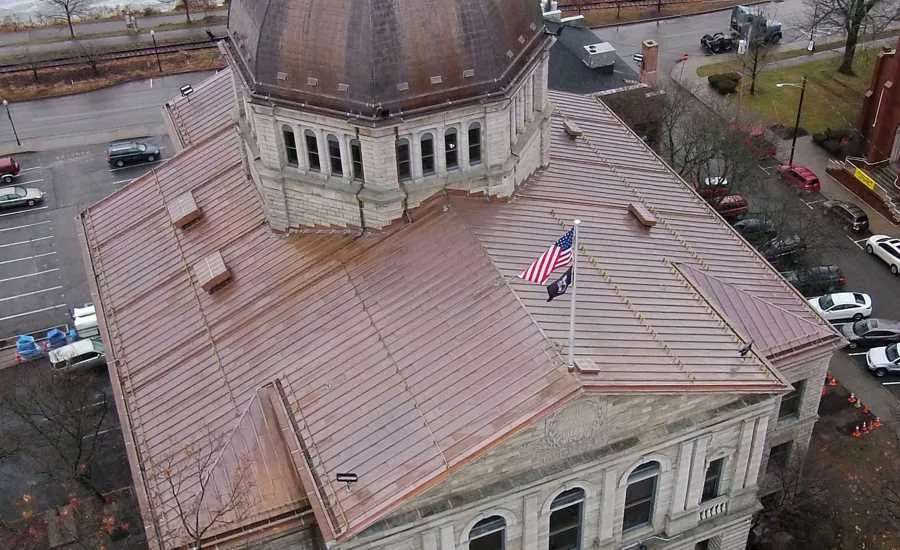

The second phase, which ran from April 2017 to January 2018, included replacement of the 100-year-old Spanish copper shingles with 12,000 square-feet of 20-ounce, cold-rolled batten seam copper panels. For the flashings, gutters and downspouts, 24-ounce copper was used.
Batten seam roofing consists of copper pans running parallel to the roof slope, separated by wood battens. The battens are covered with copper caps that are loose locked into adjacent pans. The width of these preformed or field formed pans may vary. The recommended maximum depends on the weight of the copper being used, which can be found on www.copper.org.
The project also included restoration of the capitol’s statue atop the dome, Lady Justice, which kept a watchful eye over the Susquehanna River. After removing the paint from the statue, the team found that overall, the statue’s copper was in great condition. However, the head was destroyed from a supporting pole that had snapped.
“Fixing Lady Justice was memorable for us during this project,” said Burge. “It was uplifting to see the symbol of impartiality and fair-mindedness towering above the once long list of challenges.”
Earning Their Spot
For their incredible work on the Bradford County Courthouse, all three firms were honored with a 2018 North American Copper in Architecture (NACIA) Award, which recognizes and promotes North American building projects for their outstanding use of architectural copper and copper alloys.
Additional information about the awards program, as well as technical tips and information regarding different types of copper applications can be found on CDA’s website, www.copper.org.
